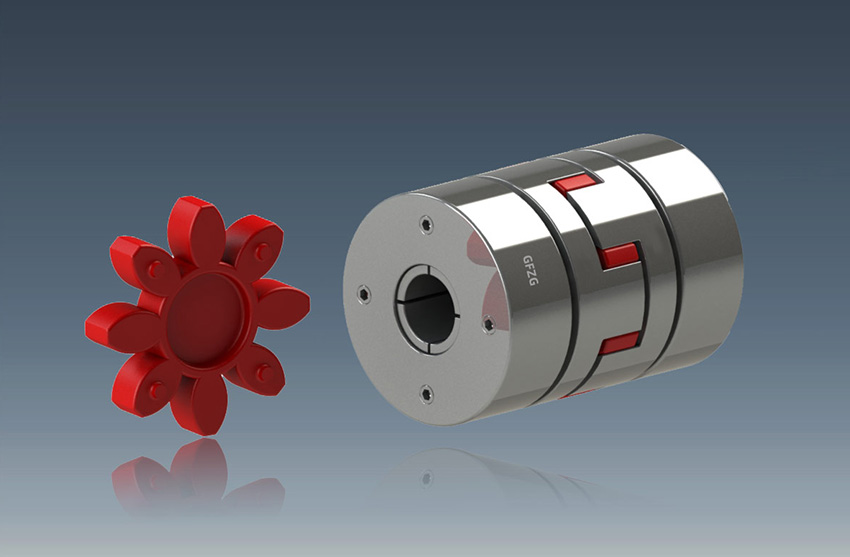

>The bushing is made of SUS304 stainless steel, which has good corrosion resistance
>Jaw coupling with integrated clamping system for fricitionally engaged shaft-hub-connections
>Zero backlash ,easy installation
>Excellent response and high torque capacity
>The clockwise and counterclockwise rotation characteristics are the same
>The intermediate elastomer is made of polyurethane
>Absorb vibrations, compensate for radial, angular, and axial deviations
>For servomotor/stepmotor connect
GFZ-Aluminum Alloy Jaw Coupling
GFZG-Stainless steel flexible jaw coupling
GCLZ-Intermediate Shaft Gear Coupling
TL-Flexible Pin& bush Coupling
TLC-Flexible Pin& bush Coupling
GLG-Double diaphragm clamping coupling
GLN-Aluminum alloy double diaphragm coupling
GSN-Aluminum alloy single diaphragm coupling
GLT-Aluminum alloy double diaphragm coupling
GST-Aluminum alloy single diaphragm clamping coupling
GSZ-Single membrane expansion coupling
KC-B Quick detachable elastic coupling
TB standard locking device rigid coupling
Z1 Clamping sets K150 / T300 / R50 / SW300 / L2
Z2 locking assembly K100/ R40/ SW200/ L1
Z6 locking devices /K225 / T134 / R15 / L8
Z7B locking assembly K603/ T603 /R19 / SW200D
Z7C standard locking device / T602
Z8 Locking Assembly K206 / T133 / R16 / L7
Z9 standard lshaft ocking device
Z11 locking assembly / K250 / T110 / R80 / SW100
Z12A locking assembly / K400 / R11
Z13 locking assembly / K201/ T131/ R71/ L5
Z19A clamping sets /K125 / T250/ L9
Z19B locking assembly / k125.1 /T250L/ R55/ L12
Example：GFZ - □□ × □□ - □□ × □□
Serise Diameter Lenght d1Bore d2Bore
External dimension table Unit:mm
| Product model | The inner diameter dimensions of the common used d1/d2 | ΦD | L | LF | LP | M | Tighten torque (n.m) | Coupling weight (g) |
| GFZG-40×66 | 10‑11‑12‑12.7‑14‑15‑16‑17‑18‑19‑20‑22 | 40 | 66 | 39.1 | 13.7 | M4 | 1.7 | 280 |
| GFZG-55×78 | 12‑14‑15‑16‑17‑18‑19‑20‑22‑24‑25‑28‑30‑32 | 55 | 78 | 46.2 | 16.1 | M5 | 4 | 700 |
| GFZG-65×90 | 17‑18‑19‑20‑22‑24‑25‑28‑30‑32‑35‑38 | 65 | 90 | 52.9 | 16.7 | M5 | 4 | 1100 |
| GFZG-80×114 | 19‑20‑22‑24‑25‑28‑30‑32‑35‑38‑40‑45 | 80 | 114 | 67 | 22.5 | M6 | 7 | 1850 |
| GFZG-95×126 | 20‑22‑24‑25‑28‑30‑32‑35‑38‑40‑45‑46‑47‑48‑50 | 95 | 126 | 73.2 | 24 | M8 | 15 | 5680 |
| GFZG-105×140 | 22‑24‑25‑28‑30‑32‑35‑38‑40‑45‑46‑47‑48‑50‑60 | 105 | 140 | 81.2 | 26.4 | M8 | 15 | 7730 |
| GFZG-120×160 | 24‑25‑28‑30‑32‑35‑38‑40‑45‑46‑47‑48‑50‑60‑65 | 120 | 160 | 91.1 | 27.4 | M10 | 25 | 9300 |
Note:The inner diameters of the inner holes at both ends of the coupling can be freely combined from small to large. The inner holes are machined with H7 standard tolerance, and the inner diameter dimensions marked in the table are for reference only. Please contact us for detailed parameters of the aperture you require.
Technical Parameter Table Unit:mm
| Product model | Torque (N.m) | Allowable eccentricity (mm) | Allowable deviation angle (∠°) | Allowable axial deviation (mm) | Allowable rotational speed (RPM) | Static torsional stiffness (N.m/rad) | Moment of inertia (N.m) | Coupling weight (g) |
| GFZG-40×66 | 19 | 0.02 | 1 | ±0.80 | 15000 | 550 | 1.12×10⁻³ | 280 |
| GFZG-55×78 | 68 | 0.02 | 1 | ±0.80 | 13000 | 1510 | 4.5×10⁻³ | 700 |
| GFZG-65×90 | 190 | 0.02 | 1 | ±0.80 | 10500 | 2800 | 1.9×10⁻³ | 1100 |
| GFZG-80×114 | 270 | 0.02 | 1 | ±0.80 | 8600 | 3600 | 1.9×10⁻² | 1850 |
| GFZG-95×126 | 440 | 0.02 | 1 | ±0.80 | 7200 | 4700 | 2.2×10⁻² | 5680 |
| GFZG-105×140 | 720 | 0.02 | 1 | ±0.80 | 5800 | 5800 | 3.3×10⁻² | 7730 |
| GFZG-120×160 | 1040 | 0.02 | 1 | ±0.80 | 5200 | 7200 | 1.03×10⁻¹ | 9300 |
Note: The above inertia moment and various technical parameters are measured from the standard of large aperture to the value of large fixed torque, which is related to the durability of the coupling itself. The larger the outer diameter, the greater the force, and the smaller the outer diameter, the higher the allowable speed.
